OVERVIEW


FIRST IN INNOVATION. FIRST IN MALAYSIA!

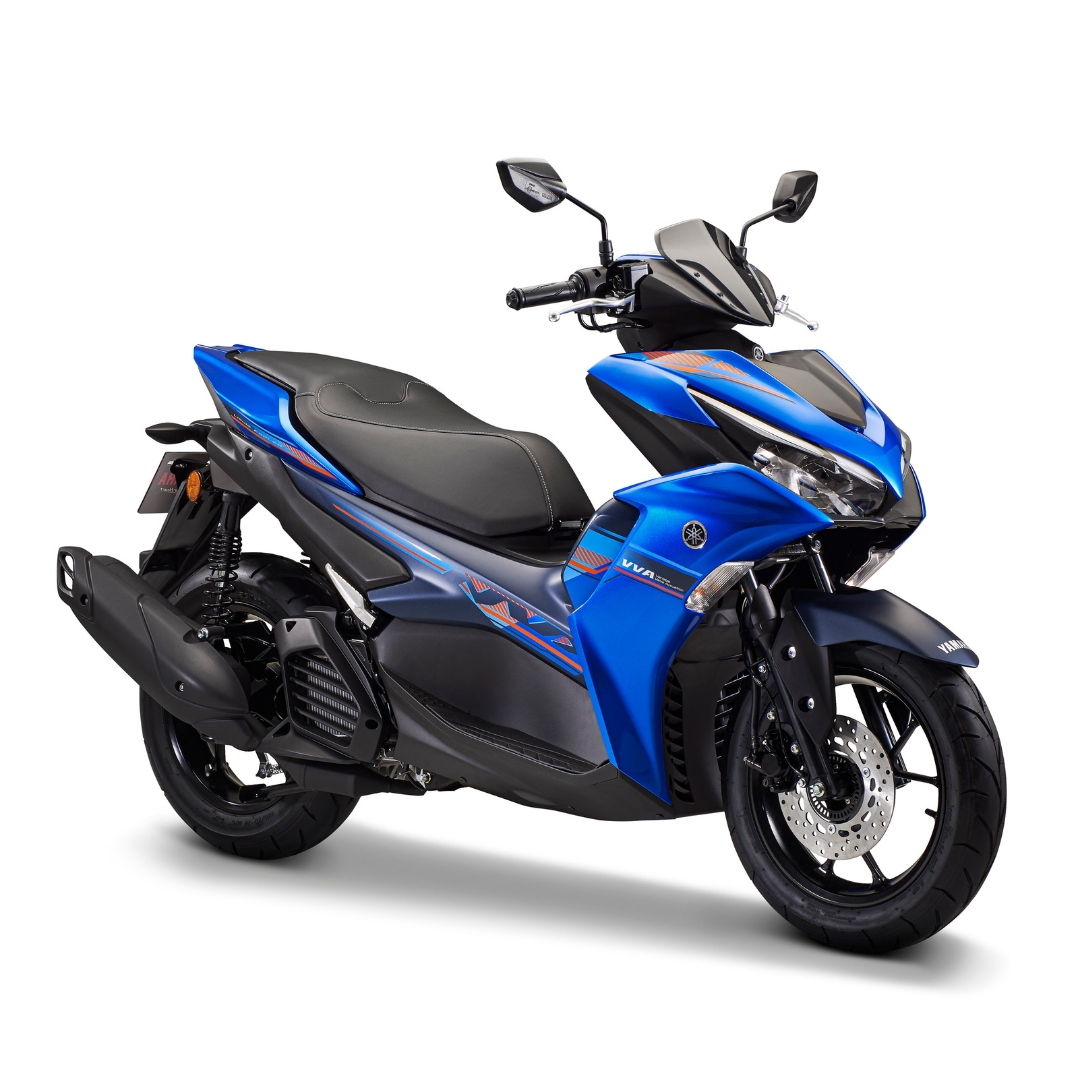

Introducing the new Yamaha NVX, the first Yamaha model in Malaysia to feature the Yamaha’s Y-Connect, a state-of-the-art innovation that allows you to connect your smartphones to your bikes, with its built-in maintenance scheduling, malfunction notification, fuel consumption and with its phone call notification you are guaranteed not to miss your incoming calls ever again. All the above are easily accessible via your new NVX’s LCD panel. The new NVX now also comes with an ABS and non-ABS options. Many new advanced and enhanced special features make this performance-oriented automatic the perfect new riding machine for the young-at-heart!



COLOR OPTION

31.png PLATINIUM SE (ABS)28.png GP BLUE (ABS)
29.png RED (NON-ABS)30.png CYAN (NON-ABS)

FEATURES

Y-CONNECT


Keep connected with Yamaha Y-Connect. Monitor functions such as maintenance schedules, malfunction notification, fuel consumption, battery levels and last parking location, incoming and missed call, and message notifications.


(ABS VERSION)

SMART KEY


Start your engine without the need of a key.



(ABS VERSION)

REAR SUSPENSION WITH SUB-TANK


Riding comfort is boosted by the rear suspension sub-tank which improves stability on uneven roads and provided consistent damping performances.


(ABS VERSION)

FRONT BRAKE ABS SYSTEM


Equipped with ABS now provides superior stopping power to the 230mm front disc brake.



(NEW)

155CC ENGINE


A liquid-cooled SOHC, single cylinder Yamaha Blue Core engine with VVA puts out 15.5hp at 8,000 rpm and 13.9Nm at 6,000 rpm.


(NEW)

DIGITAL LCD PANEL


A fully digital LCD instrument panel that is compatible with the Y-Connect smartphone app and features the ability to simultaneously display the RPM bars on the side to add a more sporty flair to the design. The angle and design of the panel ensures improved legibility in daylight conditions.


(NEW)

LED HEADLIGHTS WITH PILOT LIGHT


The headlight’s intensity and orientation have been optimised to make the machine eye-catching and give the rider excellent night time visibility as well. The LED position lights pair light guides with two inner lenses to create a wider-looking and sportier appearance.


(NEW)

LED REAR LIGHTS


The tail/brake lights consist of 12 compact and densely-situated LEDs that gives a three-dimensional appearance and emphasis the machine’s good looks.


5.5L

FUEL TANK


Together with the highly fuel-efficient engine, a new larger fuel tank means the NVX has a range capable of covering approximately 200km from a full tank.


12V DC

OUTLET


To facilitate the charging of your digital devices on-the-go.



STOP & START

SYSTEM


This system automatically shuts off the engine when the machine is stopped and idling at traffic lights to further improve fuel efficiency.


AERODYNAMIC FULL FAIRING

LOOK AT THE FRONT


The new side covers were designed to improve comfort while also presenting a slimmer, more compact view from the rear.


155CC LC4V BLUE CORE

ENGINE WITH VVA


Next generation 155cc automatic engine Complete with VVA (Variable Valve Actuation) ensures maximum power every time. More power, fuel efficiency and superior riding with Blue Core technology.



SPECIFICATION

Engine

Type
Liquid Cooled, 4-Stroke, SOHC, VVA
Bore x Stroke
58.0mm x 58.7mm
Compression Ratio
11.6 : 1
Maximum Horsepower
11.3kW (15.4 PS) / 8,000 rpm
Maximum Torque
13.9Nm (1.4 kgf.m) / 6,500 rpm
Starting System
Electric
Engine Oil Capacity
1.0L
Cylinders
Single Cylinder
Displacement
155cc
Lubrication System
Wet Sump
Fuel System
Fuel Injection
Ignition System
TCI
Clutch Type
Dry, Centrifugal, Shoe

Transmission

Transmission Type
V-Belt Automatic

Chasis

Frame Type
Backbone
Overall Length
1,980mm x 700mm x 1,150mm
Seat Height
790mm
Wet Weight
125kg (ABS) / 122kg (STD)
Fuel Tank
5.5L
Wheel Base
1,350mm
Min. Ground Clearance
145mm

Brakes

Front brake
Single Hydraulic Disk with ABS / Single Hydraulic Disk (STD)
Rear brake
Spindle Type

Suspension

Front Suspension Type
Telescopic
Back Suspension
Swing arm

Tires

Front Tyre
110/80 – 14M/C 53P Tubeless
Back Tyre
140/70 – 14M/C 62P Tubeless

Electrical

Plug Type
NGK / CPR8EA9
